Air Operated Diapgramph Pump
Air Operated Diapgramph Pump

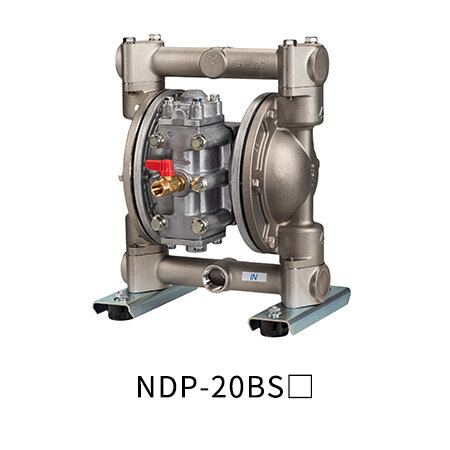

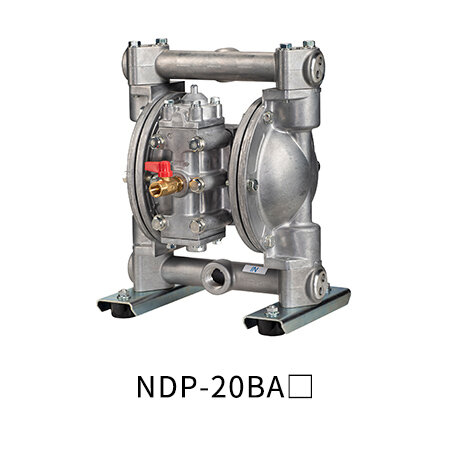

Compact and High Water Discharge!
Safe Design with Intrinsically Explosion-proof Specification. An air-powered diaphragm pump that can transport highly flammable liquids at high pressure.
Fully self-suction type that can pump out fluid efficiently, with no pump-priming required. This series of diaphragm pumps are suitable for slurry without the risk of leakage due to seal friction.
Main Applications
Collection of Waste Liquid/Sludge/Supply of Paint To Roll Coater/Collection of Cutting Oil/Application of Adhesives/Application of Mold Release Agent/Mold Coating Material
| Body Material | A: Aluminum (ADC12) | S: Stainless Steel （SCS14） | P: GF Polypropylene （PP-GF） | P: GF Polypropylene （PP-GF） |
|---|---|---|---|---|
| Diaphragm Material | ||||
| C: Polychloloprene (CR) | NDP-20BAC (851316) | NDP-20BSC (851321) | NDP-20BPC (851663) | NDP-20BPC-FL (853819) |
| N: Buna N (NBR) | NDP-20BAN (851317) | NDP-20BSN (851322) | NDP-20BPN (852596) | NDP-20BPN-FL (853820) |
| E: Ethylene Propylene Diene Monomer (EPDM) | NDP-20BAE (851318) | NDP-20BSE (851323) | NDP-20BPE (852407) | NDP-20BPE-FL (853821) |
| V: Fluorelastomer (FKM) | NDP-20BAV (851319) | NDP-20BSV (851324) | NDP-20BPV (852597) | NDP-20BPV-FL (853822) |
| T: Polytetrafluoroethylene (PTFE) | NDP-20BAT (851320) | NDP-20BST (851325) | NDP-20BPT (851664) | NDP-20BPT-FL (853823) |
| H: Thermoplastic Polyester Elastomer (TPEE) | NDP-20BAH (851729) | NDP-20BSH (851730) | NDP-20BPH (851734) | NDP-20BPH-FL (853824) |
| S: Thermoplastic Olefinic Elastomer (TPO) | NDP-20BAS (852690) | NDP-20BSS (852691) | NDP-20BPS (852692) | NDP-20BPS-FL (853825) |
H/T: Thermoplastic Polyester Elastomer (TPEE) | NDP-20BAH/T (851875) | NDP-20BSH/T (851876) | NDP-20BPH/T (851877) | NDP-20BPH/T-FL (853826) |
| Ball Valve | NDP-20B〇H/T: PTFE Others: Same as the diaphragm material | |||
|---|---|---|---|---|
| Valve Seat | SCS14 | SCS14 | PP-GF | PP-GF |
| Valve Stopper | ADC12 | SCS14 | PP-GF | PP-GF |
| Center Disk | NDP-20BAT: A5056 Others: SUS316 | SUS316 | PP-GF SUS13 (Insert material) | PP-GF SUS13 (Insert material) |

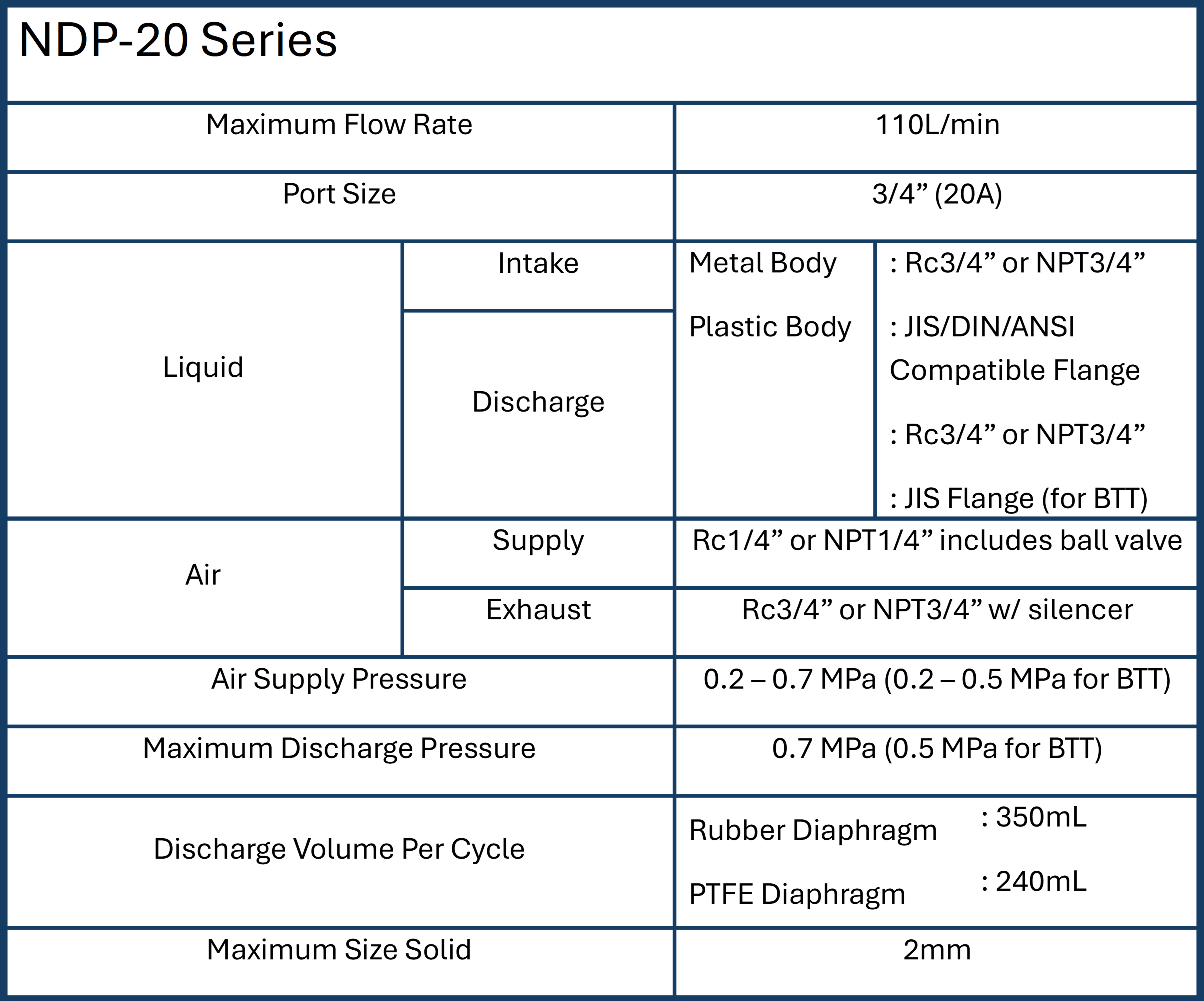

| Nominal Diameter | 3/4"(20 mm) | |||
|---|---|---|---|---|
| Material Connection | Suction Port | Rc 3/4 | JIS flange 10K 20A equivalent | |
| Discharge Port | Rc 3/4 | JIS flange 10K 20A equivalent | ||
| Air Connection | Supply Port | Rc 1/4 (W/air valve) | ||
| Exhaust Port | Rc 3/4 (W/silencer) | |||
| Air Supply Pressure | 0.2~0.7 Mpa *1 | |||
| Maximum Discharge Pressure | 0.7MPa | |||
| Water Discharge/Cycle | Fluorine resin diaphragm: 240 mL *2 Other diaphragm: 350 mL *2 | |||
| Maximum Flow Rate | Fluorine resin diaphragm: 100 L/min *3 Other diaphragm: 110 L/min *3 | |||
| Maximum Air Consumption | Fluorine resin diaphragm: 1400 L/min (ANR) Other diaphragm: 1200 L/min (ANR) | |||
| Maximum Size Solid | Maximum 2 mm | |||
| Suction Head Lift | NDP-20B○T: 1.5 m Others: 3 m | |||
| Net Weight | 9.0 kg | 14.0 kg | 8.0 kg | 8.0 kg |
1 The maximum supply air pressure for a type with a resin-made pump body will depend on the liquid temperature.
2 The water discharge is provided as a rough approximation only. The discharge will differ depending on factors such as the liquid to be transferred and the piping conditions.
3 Maximum flow rate is a value indicating the pump capacity. We recommend selecting a size that allows some leeway, taking into account the impact on the life span of the diaphragm.
