Effluent Pumps
Effluent Pumps
1 hp High-Head Effluent Pumps
1 hp1
1/2" or 2 Discharge
3/4" Solids handling

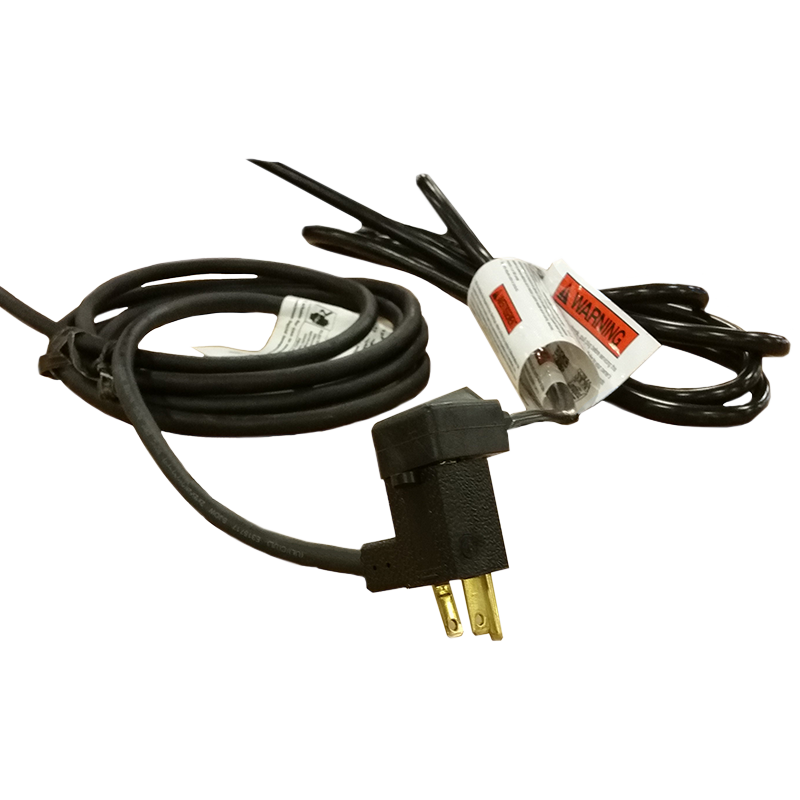

The FL100-Series by Liberty Pumps covers a wide-range of high-head pump applications. Designed with Liberty Pumps unique one-piece cast iron body and quick-connect cords in 25' standard length.

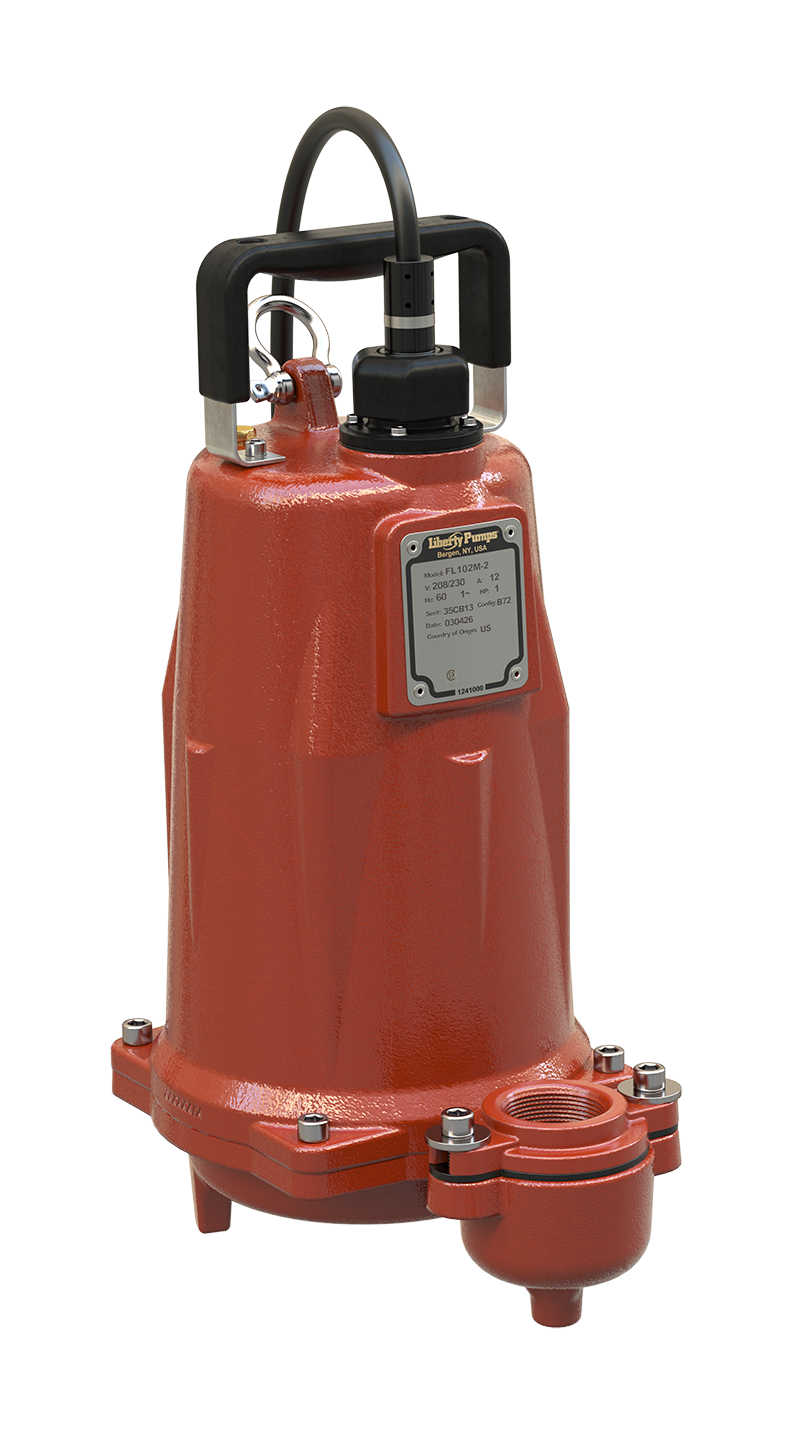

The FL100-Series by Liberty Pumps is a 1 hp effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The pump features a dual-sized threaded discharge of 1-1/2" and 2" for connection to either size pipe. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL100-Series will provide years of reliable performance.
| Specification | Unit | Value |
|---|---|---|
| Max. Flowrate | GPM | 100 |
| Max. TDH | Ft. | 90 |
| Solids Handling | In. | 3/4 |
| Port Size | Discharge, in. | 1.5 or 2 |
| Motor | Hp | 1 |
| Motor | V | 208-230; 440-480; 575 |
