Submersible Pumps
Submersible Pumps

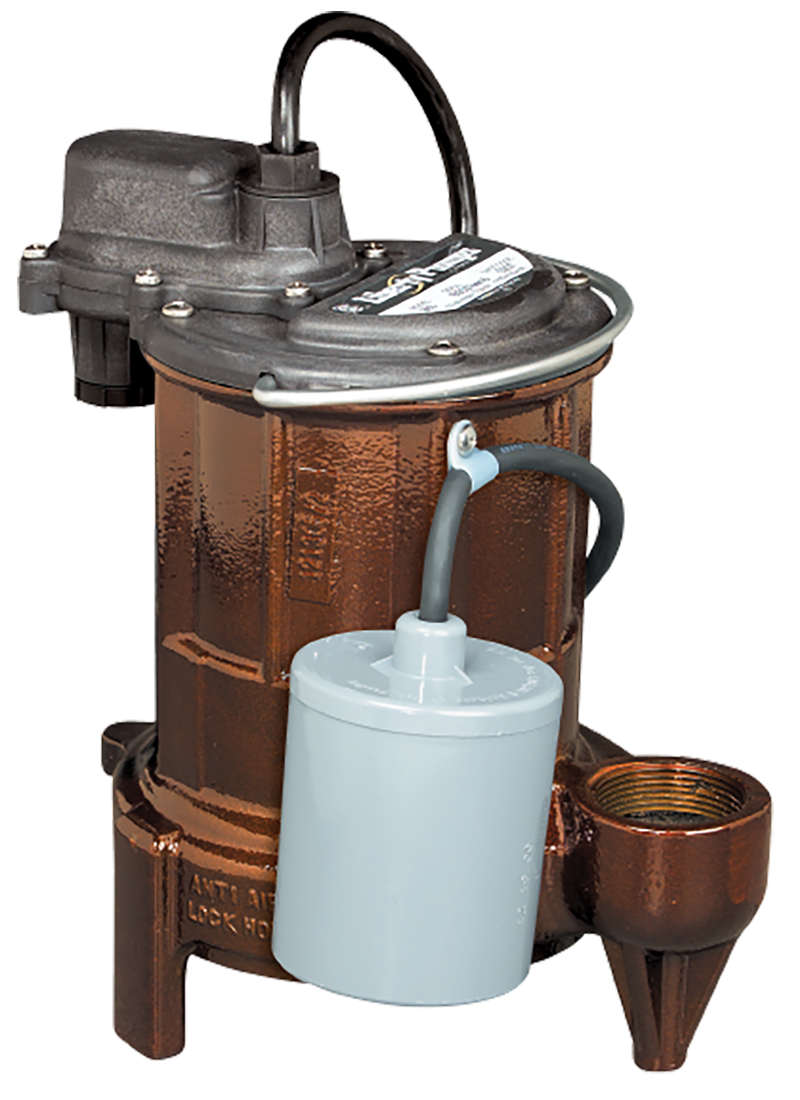

1/2 hp Cast Iron Sump/Effluent Pump
1/2 hp1-1/2
Discharge3/4
Solids handling

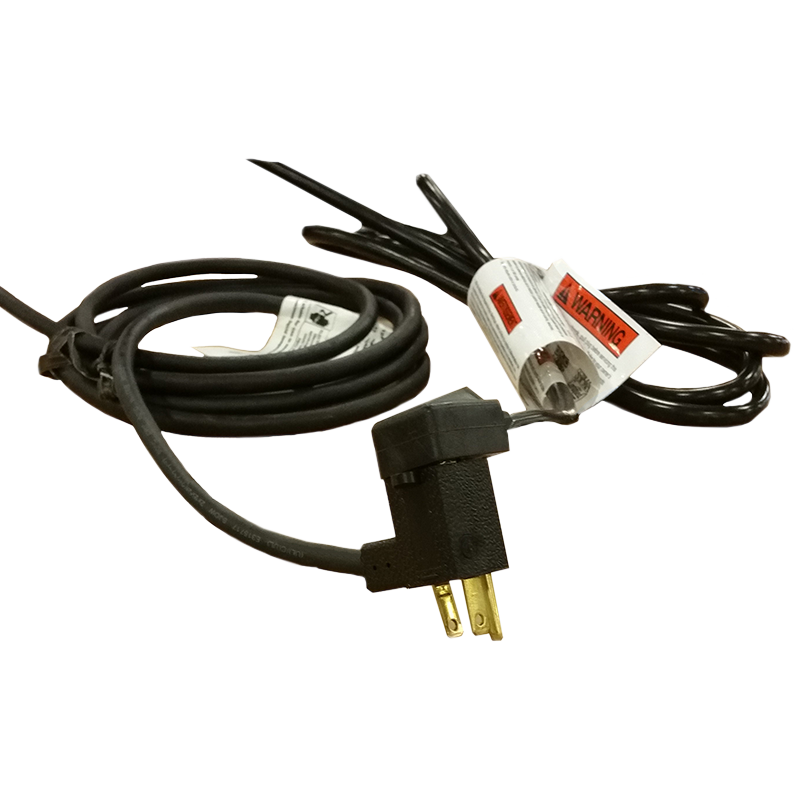

With a shut-off head of 37 feet and 3/4" solids handling capability, the 280-Series by Liberty Pumps covers a wide-range of low-head to mid-range pump applications. Designed for STEP systems, mound systems, liquid waste transfer and high output sump applications, you can count on the 280-Series to offer superior performance. Designed with Liberty Pumps unique one-piece cast iron body and quick-disconnect cords available in 10' and 25' lengths. 35' and 50' cords available on some models. See literature for specifics. High-output 1/2 hp submersible with rugged cast iron housing.
| Specification | Unit | Value |
|---|---|---|
| Max. Flowrate | GPM | 65 |
| Max. TDH | Ft. | 37 |
| Solids Handling | In. | 3/8 |
| Port Size | Discharge, in. | 1.5 |
| Motor | Hp | 1/2 |
| Motor | V | 115 & 208-230 |
